EB180: EB180 Extended baggage

The Extended Baggage EB-180 manufactured by Airglas, Inc. was designed for the early model Cessna 180’s. Early model airplanes had only the standard baggage compartment, from behind the rear seat (fuselage station F.S. 90) to the rear cabin wall (F.S. 108). After about 67’ Cessna started installing a factory extended baggage that goes from (F.S.108) to the next bulkhead aft (F.S.140). Our Extended
Baggage is similar to the factory one as far as location and maximum weight allowed.
Weight: 5.5 lbs

STC Certified on: Cessna 180, 182, & 185
C-170 is coming soon

Product Highlights:
Fits Cessna 180, Models A-K with the battery moved from the original location.
FAA approved for maximum weight of 50 pounds.

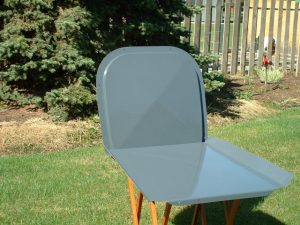

The extended baggage consists of two pieces, a bulkhead, and a floor panel.

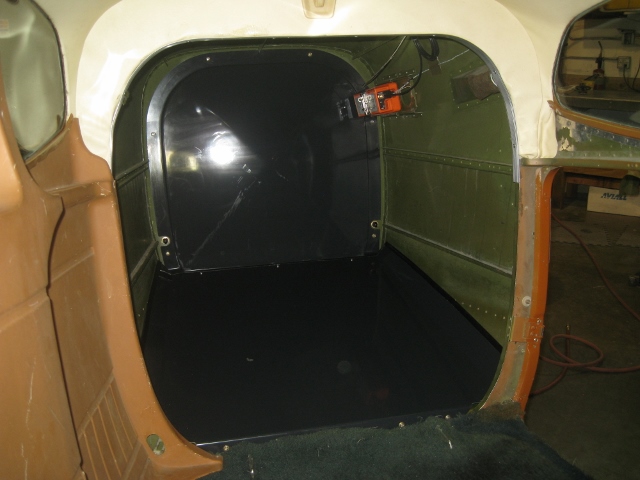

The bulkhead panel attaches to the front of the bulkhead at F.S. 140, the floor panel then attaches to the bottom front of the bulkhead panel and slopes forward and down to the floor of the standard baggage compartment at F.S. 108.

Construction: Both the bulkhead and floor panel are constructed of vacuum bagged carbon fiber and epoxy resin.

Dark gray surface that can be left as is, or can be scuff sanded and painted to match your aircraft interior.
